SumoSPACE+
Optics & Light Shaping Tools
SUMOSPACE+ Optics.
SumoLIGHT offers a variety of special optics in order to provide a uniform illumination with almost constant light intensity over the entire angle of the beam with virtually no spill light. In this way an extremely homogeneous light distribution is achieved and stray light largely avoided.
The lenses are interchangeable and available for 3 different beam angles of 20°, 30° and 60°.
Specifications
Dimensions Single Lens 1 x 20 x 18 cm
Weight: 20° Lens : 880 g; 30° Lens: 748 g; 60° Lens: 585 g
Photometrics
20° Beam Angle: 13,600 Lux [1,260 fc] at 3 m
30° Beam Angle: 5,400 Lux [501 fc] at 3 m
60° Beam Angle: 3,060 Lux [284 fc] at 3 m
120° Beam Angle (Without Lenses): 1,150Lux [107 fc] at 3 m
Changing the SUMOSPACE+ 30° Lenses
Changing the SUMOSPACE+ 20° Lenses
SUMOSPACE Light Shaping Tools.
SUMOSPACE
Light Shaping Tools Kit
The SUMOSPACE Light Shaping Tools Kit comprises all the light shaping tools for key, back, fill or soft lighting. All parts are foldable or can collapse resulting in a very small package and fast and easy setup.
The Soft Grid and the Black Skirts Cover can be combined with the Light Shaping Tools Kit and are available as optional accessories.
Reflector
The Reflector is an open-faced light shaping tool that is highly reflective and easily attached to the fixture with it’s elastic straps. The Reflector is a multi-purpose product with the ability to attach other light shaping tools so that you can use for key, back, fill or soft lighting.

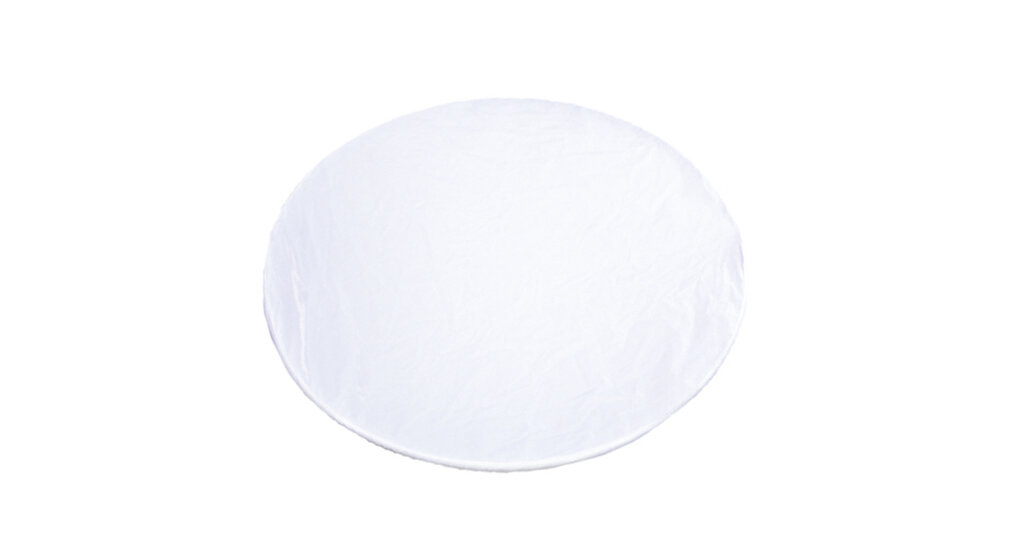

Target
The Full Diffusion Target is used as a Beauty Bank in combination with the Reflector or as a space light together with the Reflector and a Diffusion Skirt. The Full Diffusion Target is an extremely durable and lightweight fabric and can collapse to a third of the original size. It can be attached to the Reflector or Diffusion Skirts with a zipper.
Diffusion Skirts
The Diffusion Skirts are used for illuminating entire rooms with soft, even light by simply attaching the Skirt to the Reflector with the zippers. In addition, the Skirts are collapsible down to a third of the original size.
Specifications.
SUMOSPACE Light Shaping Tools Kit;
1x Reflector, 1x Target, 1x Skirt Short, 1x Light Shaping Tools Bag.
Weight 1.5 kg
Reflector
Length 40 cm
Diameter 90 cm
Weight: 450 g
Target
Target Full Diffusion
Diameter 90 cm
Weight 287 g
Diffusion Skirt Short
Length 45 cm
Diameter 90 cm
Weight 330 g
Diffusion Skirt Long
Length 90 cm
Diameter 90 cm
Weight: 392 g
Black Skirt Cover
The Black Skirt Covers come in half panels and are attached to our diffusion skirts with Velcro. These Black Shirt Covers act as a Gobo which provides more directional control of the light output from the fixture.
Specifications.
Short Black Skirt Cover Set (2 x Half Panels)
Single Skirt Short, 1x Half Panel
Dimensions 58 x 143 cm Weight: 373 g
Long Black Skirt Cover Set (2 x Half Panels)
Single Skirt Long, 1x Half Panel
Dimensions 102 x 143 cm Weight: 632 g
SUMOSPACE Soft Grid
The Soft Grid is a perfect complement to the SUMOSPACE Reflector, which directs the output and controls spill light. Reduces the near-to-far light ratio, which allows you to have more even lighting when a subject is moving towards or away from the light. It has a 40° cut off angle. It is attached easily to the Target and Reflector.
Specifications.
SUMOSPACE Soft Grid
Cut off angle: 40°
Diameter: 90 cm
Weight: 240 g
Light Shaping Tools Classic
As an addition to the versatile Light Shaping Tools Kit, SUMOLIGHT is now offering the Diffusion Skirts without Reflector in the industry standard sizes of 90 x 84 cm (LxW) for Studios and projects where it is important to have the same appearance and workflow as i.e. legacy space lights.
Diffusion Skirt, Target and soon Black Skirt Classic
Specifications.
Light Shaping Tools Kit Classic
1x Diffusion Skirt, 1x Target.
Diffusion Skirt Classic
Length 90 cm
Diameter 84 cm
Weight: 1.85 kg
Target Classic
Diameter 84 cm
Weight: 760 g
SUMODOME Pancake Lantern
Unfolds in seconds and attaches to the SUMOSPACE using the elastic loops to the six snap rubber corners on the fixture. Our design makes better use of the light while making it much easier to get the lantern up out of frame. The spring steel rods stay permanently in the lantern. There is no need to remove them for packing.
Use this low-profile lantern as a top light and a key light for casting semi-directional lighting overhead where space is limited.
Specifications.
DOME for SUMO SPACE
1x Pancake Lantern and Bag
Dimensions: 52 x 57 x 22 cm
Weight: 220 g
Chimera Octaspace Lightbanks
Chimera Octaspace Lightbanks OctaSpace 3 and 5 are compatiple with the SUMOSPACE+ fixture.*
*“OP” Speed Ring and Mount Kit required
